愛普生是日本有名的頻率元件制造商,專業生產銷售石英晶振,石英晶體振蕩器,貼片晶振,晶體濾波器等.發展至今已是國際有名的晶體元件制造商,致力于為客戶提供高性能,高可靠,高品質晶振產品。

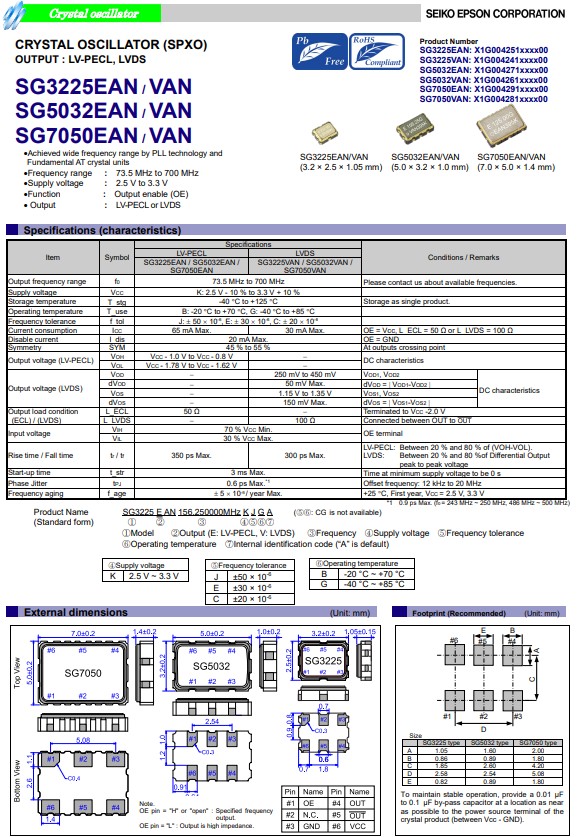

日本進口愛普生晶振SG5032VAN，是一款小體積晶振尺寸5.0x3.2mm有源晶振，支持LVDS輸出差分晶體振蕩器，六腳貼片晶振，電源電壓2.5V至3.3V，寬頻率范圍73.5MHz至700MHz任意一頻點，具有低電源電壓,滿足產品低消耗電流的特點，該產品具有超小型，輕薄型，低電源電壓，低抖動，低功耗，低損耗，低耗能，低電平等特點，能夠很容易地識別小信號,能夠從容精確地處理'雙極'信號,對外部電磁干擾（EMI）是高度免疫的，被廣泛用于通訊設備,機頂盒,光端機,安防設備及各種頻率控制設備上.

lora模塊低功耗晶振應用SG5032VAN,X1G004261002300,5032有源晶振

產品編碼	有源晶振	頻率	尺寸	輸出波
X1G004261000100	SG5032VAN	100.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261000200	SG5032VAN	125.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261000500	SG5032VAN	200.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261000600	SG5032VAN	156.250000MHz	5.00x3.20x1.20mm	LVDS
X1G004261001100	SG5032VAN	148.500000MHz	5.00x3.20x1.20mm	LVDS
X1G004261001300	SG5032VAN	150.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261001400	SG5032VAN	155.520000MHz	5.00x3.20x1.20mm	LVDS
X1G004261002000	SG5032VAN	125.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261002100	SG5032VAN	125.006250MHz	5.00x3.20x1.20mm	LVDS
X1G004261002300	SG5032VAN	100.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261002400	SG5032VAN	200.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261002500	SG5032VAN	400.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261002900	SG5032VAN	148.500000MHz	5.00x3.20x1.20mm	LVDS
X1G004261003100	SG5032VAN	150.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261003300	SG5032VAN	156.250000MHz	5.00x3.20x1.20mm	LVDS
X1G004261003400	SG5032VAN	312.500000MHz	5.00x3.20x1.20mm	LVDS
X1G004261004300	SG5032VAN	200.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261006200	SG5032VAN	200.000000MHz	5.00x3.20x1.20mm	LVDS

X1G004261006700	SG5032VAN	148.500000MHz	5.00x3.20x1.20mm	LVDS
X1G004261006900	SG5032VAN	150.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261007100	SG5032VAN	156.250000MHz	5.00x3.20x1.20mm	LVDS
X1G004261010200	SG5032VAN	250.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261010700	SG5032VAN	153.600000MHz	5.00x3.20x1.20mm	LVDS
X1G004261011400	SG5032VAN	78.125000MHz	5.00x3.20x1.20mm	LVDS
X1G004261011900	SG5032VAN	120.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261012100	SG5032VAN	644.531250MHz	5.00x3.20x1.20mm	LVDS
X1G004261012500	SG5032VAN	148.351600MHz	5.00x3.20x1.20mm	LVDS
X1G004261012600	SG5032VAN	133.333300MHz	5.00x3.20x1.20mm	LVDS
X1G004261012800	SG5032VAN	250.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261012900	SG5032VAN	135.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261013100	SG5032VAN	322.265625MHz	5.00x3.20x1.20mm	LVDS
X1G004261013300	SG5032VAN	230.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261013500	SG5032VAN	148.351600MHz	5.00x3.20x1.20mm	LVDS
X1G004261013600	SG5032VAN	644.531250MHz	5.00x3.20x1.20mm	LVDS
X1G004261013800	SG5032VAN	148.351600MHz	5.00x3.20x1.20mm	LVDS
X1G004261014100	SG5032VAN	161.132812MHz	5.00x3.20x1.20mm	LVDS
X1G004261014300	SG5032VAN	625.000000MHz	5.00x3.20x1.20mm	LVDS

lora模塊低功耗晶振應用SG5032VAN,X1G004261002300,5032有源晶振
差分晶振是普通貼片晶振所不能夠達到的,差分晶振具有低電平,低抖動,低功耗等特性.差分晶振作為目前行業中高要求,高技術石英晶體振蕩器,具有相位低,損耗低的特點,愛普生差分晶振使用于產品中能夠很容易地識別小信號,能夠從容精確地處理雙級信號,對外部電磁干擾(EMI)是高度免疫的,差分石英晶振滿足市場需求,實現高頻高精度等要求,更加保障了各種系統參考時鐘的可靠性
