　　愛普生晶振是國內外都比較出名使用又多的晶振品牌,無論是從晶振品牌的知名度以及石英晶振的產品質量來講都是得到廣大使用該產品的群體所認可的.無論是KHZ晶振,還是MHZ晶振愛普生晶振公司都會涉及到,小到1610尺寸晶振,大到8045貼片晶振.它們正隨著市場的需求從而改進產品的封裝尺寸.以下列舉了部分愛普生晶振型號以及FC-12M晶振參數編碼表.

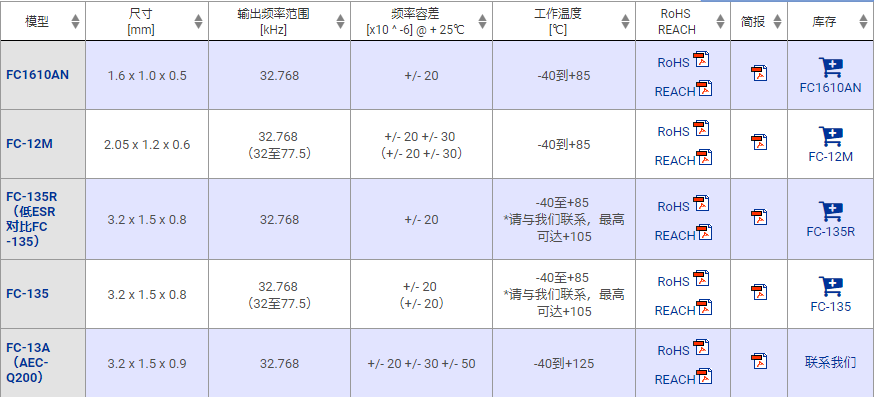

愛普生KHZ晶振系列型號表

　　愛普生晶振的每個型號都具有很多的參數,從負載電容上來區分,可以分為6PF,7PF,8PF,9PF,12.5PF,每個負載電容的背后都會有相對應的頻率穩定度,較常用的是20PPM,也是市面上使用較多的參數值了.除了20PPM,還有10PPM,15PPM,30PM,甚至可達高精度5PPM,當然,精度的數值越小,相對的偏差就會越小,價格也當然是會越貴的.

晶振型號編碼	尺寸(長寬高)	型號	頻率	負載電容	頻率偏差	工作溫度	ESR阻值
X1A000021000200	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	10 pF	+/-20.0 ppm	-40 to +85 °C	≤ TBD KΩ
X1A000021000700	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	10 pF	+/-20.0 ppm	-40 to +85 °C	≤ TBD KΩ
X1A000021000800	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	10 pF	+/-20.0 ppm	-40 to +85 °C	≤ TBD KΩ
X1A000021001100	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	10 pF	+/-20.0 ppm	-40 to +85 °C	≤ TBD KΩ
X1A000021001200	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	10 pF	+/-20.0 ppm	-40 to +85 °C	≤ TBD KΩ
X1A000061000200	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	12.5 pF	+/-20.0 ppm	-40 to +85 °C	≤ 90 KΩ
X1A000061000300	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	12.5 pF	+/-30.0 ppm	-40 to +85 °C	≤ 90 KΩ
X1A000061001400	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	12.5 pF	+/-10.0 ppm	-40 to +85 °C	≤ 90 KΩ
X1A000061002100	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	6 pF	+/-20.0 ppm	-40 to +85 °C	≤ 90 KΩ
X1A000061003200	2.05x1.2x0.6mm	FC-12M	32.768kHz	6.6 pF	+/-20.0 ppm	-40 to +85 °C	≤ 90 KΩ
X1A000091000100	3.2 x 1.5 x 0.9 mm	FC-13A	32.768kHz	12.5 pF	+/-20.0 ppm	-40 to +125 °C	≤ 70 KΩ
X1A000091000200	3.2 x 1.5 x 0.9 mm	FC-13A	32.768kHz	12.5 pF	+/-50.0 ppm	-40 to +125 °C	≤ 70 KΩ

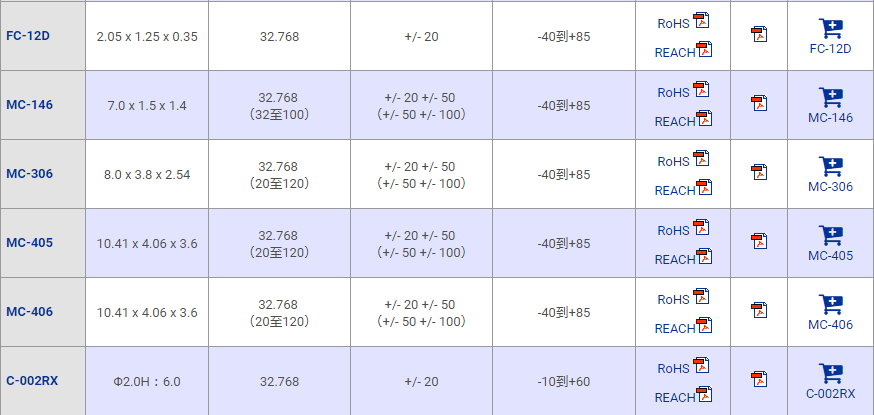

愛普生KHZ晶振系列型號表

　　當你在晶振選型的時候遇到了問題,不防將我們的官網收藏起來,我們每天都會更新品牌型號表以及單一型號詳細完整參數資料供大家觀看,當然我們也會每天定時的去更新及上架新產品信息.

晶振型號編碼	尺寸(長寬高)	型號	頻率	負載電容	頻率偏差	工作溫度	ESR阻值
X1A000021001000	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	9 pF	+/-20.0 ppm	-40 to +85 °C	≤ TBD KΩ
X1A000021001300	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	9 pF	+/-20.0 ppm	-40 to +85 °C	≤ TBD KΩ
X1A000021001400	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	9 pF	-10.0/+30.0 ppm	-40 to +85 °C	≤ TBD KΩ
X1A000021001500	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	9 pF	20.0/+60.0 ppm	-40 to +85 °C	≤ TBD KΩ
X1A000021001600	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	7 pF	+/-20.0 ppm	-40 to +85 °C	≤ TBD KΩ
X1A000061000600	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	7 pF	+/-20.0 ppm	-40 to +85 °C	≤ 90 KΩ
X1A000061000800	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	9 pF	+/-20.0 ppm	-40 to +85 °C	≤ 90 KΩ
X1A000061002400	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	9 pF	+/-10.0 ppm	-40 to +85 °C	≤ 90 KΩ
X1A000061003000	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	8 pF	+/-20.0 ppm	-40 to +85 °C	≤ 90 KΩ
X1A000061003500	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	7 pF	+/-10.0 ppm	-40 to +85 °C	≤ 90 KΩ
X1A000091000300	3.2 x 1.5 x 0.9 mm	FC-13A	32.768kHz	9 pF	+/-50.0 ppm	-40 to +125 °C	≤ 70 KΩ
